A garage door opener blinking but not working isn’t malfunctioning randomly; it’s communicating a specific diagnostic code through a pattern of light flashes. Modern openers from LiftMaster, Chamberlain, and Genie all use this same basic idea: count the blinks, match the pattern, and you usually know exactly what’s wrong before ever calling anyone.
What a Garage Door Opener Blinking But Not Working Actually Means

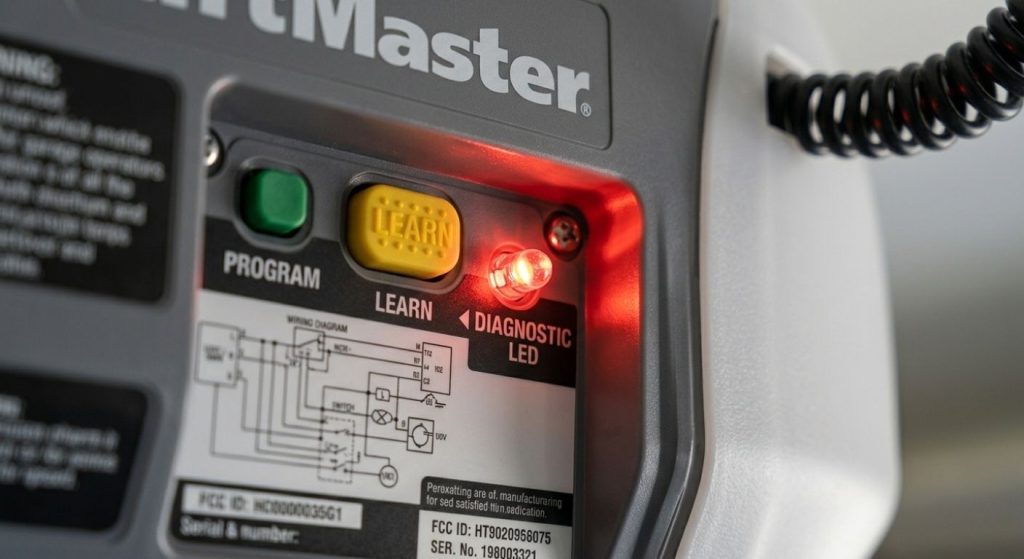

Most openers built after 2011 display diagnostic codes one of two ways: a single LED near the “Learn” button on the back of the motor unit, or a pair of small up/down arrow lights (common on newer LiftMaster and Chamberlain models). Genie openers typically use a single red or green LED instead. A garage door opener blinking but not working is running a self-check and reporting the result the number of blinks before the pause is the code, and a garage door opener repair technician can typically match it to the cause in a single visit if you’d rather skip the troubleshooting yourself.

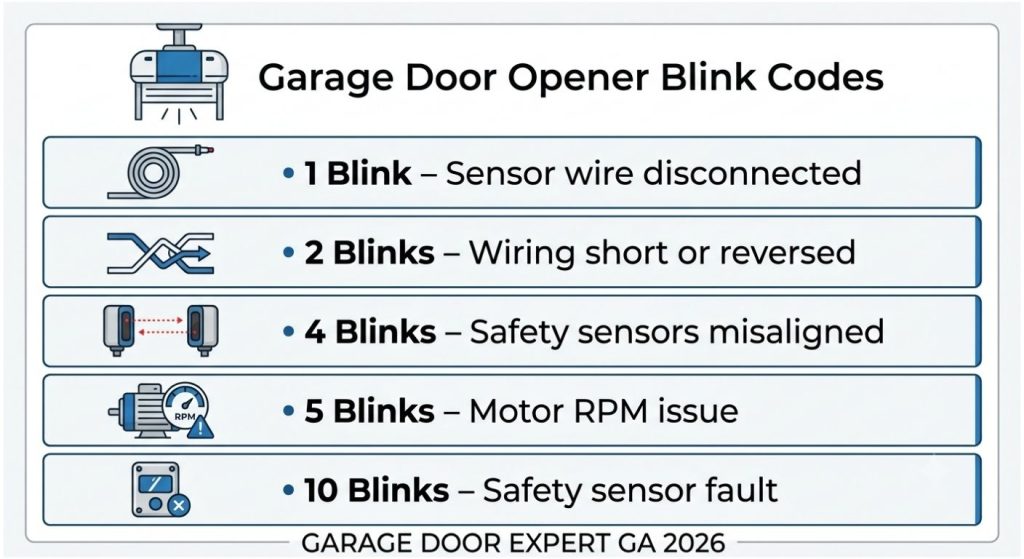

Common Blink Patterns and What They Point To
- 1 blink (LiftMaster/Chamberlain): Safety sensor wiring is disconnected, cut, or was never properly installed.
- 2 blinks: Sensor wires are reversed, or there’s a short somewhere in the sensor wiring.
- 4 blinks: Safety sensors are misaligned or something is blocking the beam between them.
- 5 blinks: The opener isn’t detecting proper motor RPM, often a balance issue or a sudden resistance change.
- 10 blinks on the main light (with a separate LED code on the unit): Confirms the safety-reversing sensors are the specific culprit.
- Genie red/green LED single or double blinks: Almost always point to the same root cause sensor obstruction, misalignment, or door binding partway through its travel.
Brands vary slightly in exactly what each count means, so check your specific model’s manual against the pattern you’re seeing rather than assuming one brand’s chart applies to another.
The Most Common Root Cause Across Every Brand
Across nearly every blink-code chart from every manufacturer, safety sensor issues are by far the most frequent cause misalignment, dirt on the lenses, or a wiring fault. This lines up with what technicians see most often in the field: the sensors are the first thing worth checking, long before assuming the motor or logic board has failed.
What to Check Before Calling for Service
- Locate both safety sensors near the bottom of the tracks and confirm their lights are solid, not blinking.
- Wipe the sensor lenses clean and make sure nothing is blocking the beam between them.
- Check that the sensor wiring isn’t pinched, frayed, or disconnected at either end.
- Power cycle the opener unplug it for 30 seconds, then plug it back in since this resolves a surprising number of temporary faults.
- Count the blink pattern again after each step to see if it’s changed or cleared.
When It’s More Than Sensors
If the blink count points to a motor circuit fault, control board failure, or RPM/load board issue rather than a sensor problem, that’s a repair job rather than a DIY fix; those components require specialized diagnostic tools and aren’t something to open up without training. According to the Door & Access Systems Manufacturers Association, the industry’s own standards body, garage door opener systems are engineered with these built-in diagnostics specifically so problems get caught and addressed before they become safety issues.
Wi-Fi Blink Codes Are a Different Situation
If your opener has a blue or green light blinking specifically related to Wi-Fi or app connectivity (common on smart/MyQ-enabled models), that’s a separate diagnostic category from the mechanical error codes above it usually points to a router or network issue rather than anything wrong with the door itself, and rarely requires a technician visit.
Metro Atlanta homeowners dealing with a garage door opener blinking but not working can see garage door repair options in Lawrenceville for service area details.
FAQ
Does every garage door opener brand use the same blink codes?
No. LiftMaster, Chamberlain, and Craftsman (all owned by the same parent company) share one code system, while Genie uses its own red/green LED pattern. Always check your specific brand’s manual.
Can I fix a blinking opener myself?
Sensor alignment and cleaning are safe DIY tasks. Anything involving the motor, control board, or internal wiring is best left to a trained technician.
Why does my opener blink only when closing, not opening?
This usually points to the safety sensors specifically, since they’re checked primarily during the close cycle to prevent the door from closing on an obstruction.
Will unplugging my opener reset the blink code?
Often, yes power cycling clears many temporary faults. If the same code returns after a reset, the underlying issue hasn’t actually been resolved.
Is a blinking opener a fire or electrical hazard?
Not typically. The blinking is a diagnostic signal, not a sign of electrical danger, though a control board fault is still worth having checked promptly.
